This machine is equipped with 4 cams (No.1-No.4), it can be used in grinding the drill bit, end milling, screw tapping and core drilling by simply changing the cam only.
Drill Positioning Device
To grind the drill of different diameter, you can adjust the scale according to the diameter, place any cutting edge parallelled to the positioning device, and start the process. This method applies to any other cutters as well.
Sharpping drills with upward-downward vibration
An innovation of sharpping drills with upward-downward vibration. Use a chunk to clamp the drill, only shake the grip, and the drill will rotate, sway back and forth, and the working tip will oscillate up and down, three actions proceed simultaneously. Changing angles automatically to sharpen the front edge angle, debris angle and skive the drill and center point. all actions can be finished in one process. It displays a high effciency and high precision performance.
Adjusting button for rear bevel angle of drill
An adjusting button for rear bevel angle of drill can control the shape size of the rear bevel angle. when more sharp edge is required, turn the button to higher scale tigue, so you will get whatever you desired.

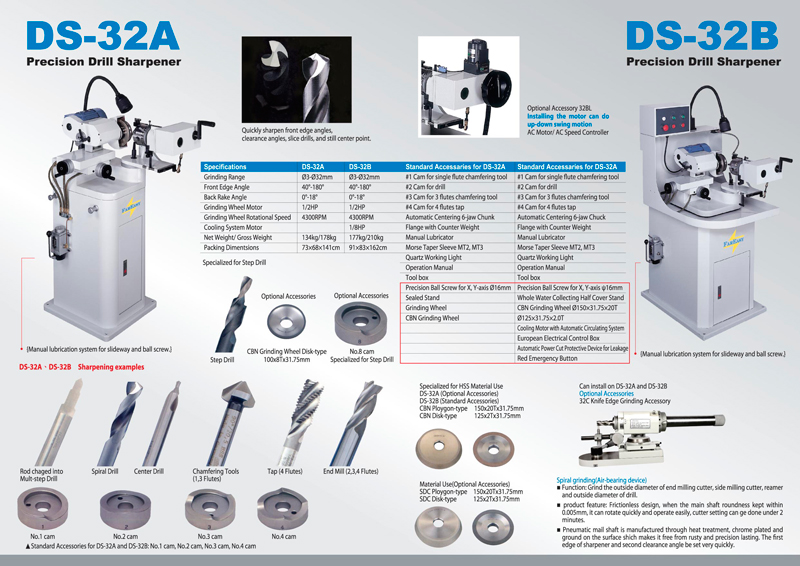

|Specifications||DS-32A||Standard Accessaries for DS-32A||Standard Accessaries for DS-32A|
|Grinding Range||Ø3-Ø32mm||#1 Cam for single flute chamfering tool||#1 Cam for single flute chamfering tool|
|Front Edge Angle||40°-180°||#2 Cam for drill||#2 Cam for drill|
|Back Rake Angle||0°-18°||#3 Cam for 3 flutes chamfering tool||#3 Cam for 3 flutes chamfering too|
|Grinding Wheel Motor||1/2HP||#4 Cam for 4 flutes tap||#4 Cam for 4 flutes tap|
|Grinding Wheel Rotational Speed||4300RPM||Automatic Centering 6-jaw Chunk||Automatic Centering 6-jaw Chunk|
|Cooling System Motor||Flange with Counter Weight||Flange with Counter Weight|
|Net Weight/Gross Weight||134kg/178kg||Manual Lubricator||Manual Lubricator|
|Packing Dimentsions||73X68X141cm||Morse Taper Sleeve MT2,MT3||Morse Taper Sleeve MT2,MT3|
|Quartz Working Light||Quartz Working Light|
|Operation Manual||Operation Manual|
|Tool box||Tool box|
|Precision Ball Screw for X,Y-axisØ16mm||Precision Ball Screw for X,Y-axis Ø16mm|
|Sealed Stand||Whole Water Collecting Half Cover Stand|
|Grinding Wheel||CBN Gromdomg Wheel Ø150X31.75X20T|
|CBN Grinding Wheel||Ø125X31.75X2.0T|
|Cooling Motor Automatic Circulating System|
|European Electrical Control Box|
|Automatic Power Cut Protective Device for Leakage|
|Red Emergency Button|
※Precision Drill Sharpener Series may be specified depend on requirement.
※Each photo is provide a reference, our machines will be continue to improve.
