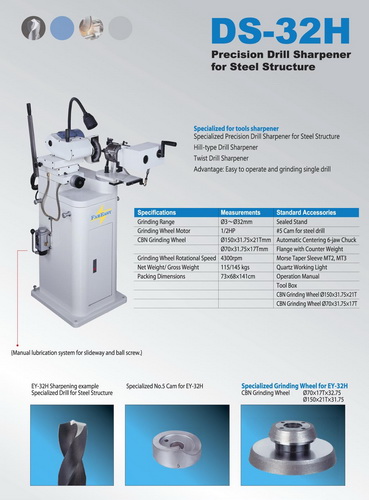

Specialized Precision Drill Sharpener for Steel Structure
Hill-type Drill Sharpener
Twist Drill Sharpener
Advantage:Easy to operate and grinding single drill
|
Cam Device This machine is equipped with 4 cams (No.1-No.4), it can be used in grinding the drill bit, end milling, screw tapping and core drilling by simply changing the cam only. |
Drill Positioning Device To grind the drill of different diameter, you can adjust the scale according to the diameter, place any cutting edge parallelled to the positioning device, and start the process. This method applies to any other cutters as well. |
|
Sharpping drills with upward-downward vibration An innovation of sharpping drills with upward-downward vibration. Use a chunk to clamp the drill, only shake the grip, and the drill will rotate, sway back and forth, and the working tip will oscillate up and down, three actions proceed simultaneously. Changing angles automatically to sharpen the front edge angle, debris angle and skive the drill and center point. all actions can be finished in one process. It displays a high effciency and high precision performance. |
Adjusting button for rear bevel angle of drill An adjusting button for rear bevel angle of drill can control the shape size of the rear bevel angle. when more sharp edge is required, turn the button to higher scale tigue, so you will get whatever you desired. |
