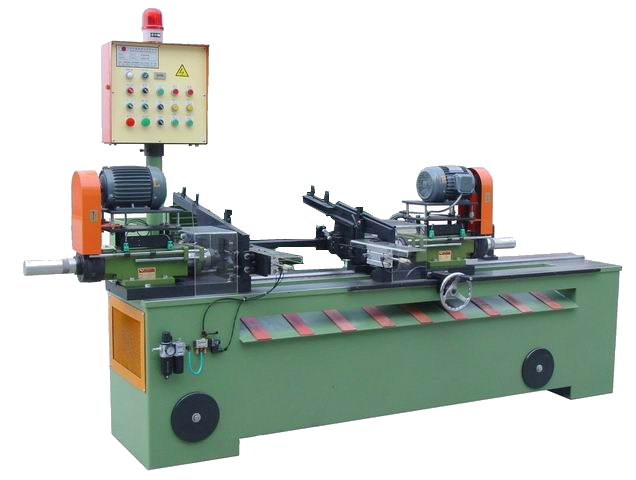

Semi Automatic Tube Double End-Finishing M/C

Product ID: CJ-14

Specification Table

TYPE Range of O.D M/M Thicknee M/M SPEED 1PC/ sec HP OPERATING FORCE MEASUREMENT WEIGHT
CJ-14A ψ10 - ψ38.1 0.5 - 2.5 1PC / 4 ~ 6 sec 6   HP HYDRAULIC 240X110X180 900   KG
CJ-14B ψ10 - ψ50.8 0.5 - 2.5 1PC / 4 ~ 7 sec 8   HP HYDRAULIC 240X120X180 1000   KG
CJ-14C ψ10 - ψ76.2 0.5 - 2.5 1PC / 4 ~ 8 sec 10   HP HYDRAULIC 240X130X180 1100   KG
